Flute to a Column

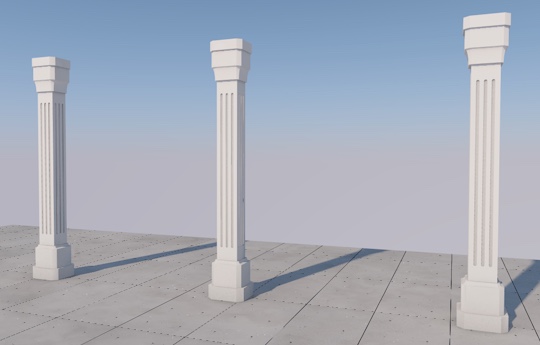

Below is an example of a column which has a Column Wrap applied.

---

To add a Wrap to a Column:

1. Go to your Plan View

2. Select the column(s)

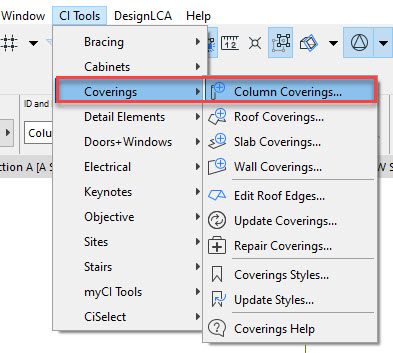

3. Go to Ci Tools > Coverings > Column Coverings…

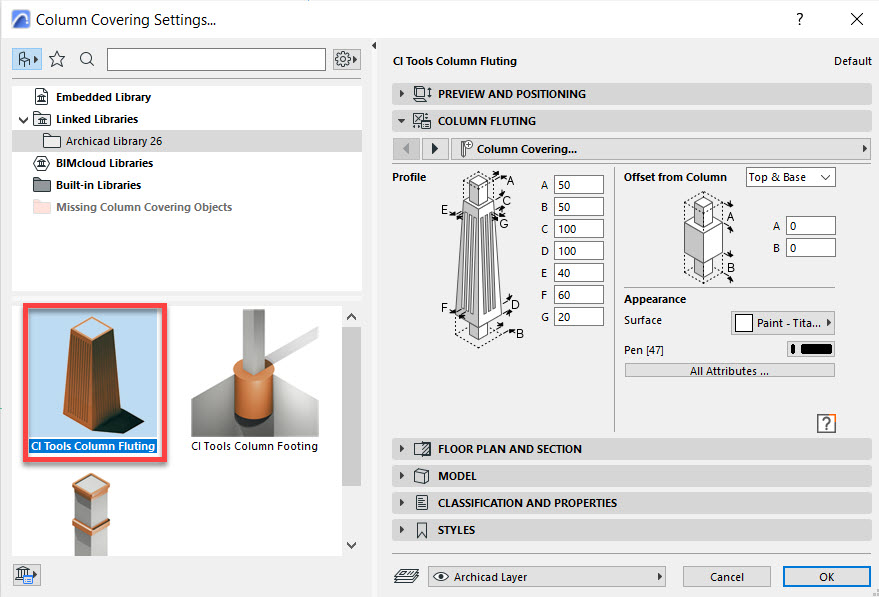

4. Select the Cadimage Column Fluting Object:































5. You should be able to change the settings according to the requirements you are after.

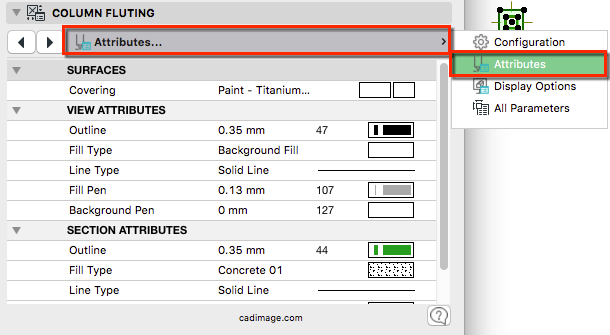

6. Click on the Menu drop-down to go to Attributes where you can change the Column covering Surfaces and other attributes

7. Click OK to place the Column Wrapping.
