Its possible to label your stairs in Section as well as in Floor Plan view!
Select the Stair.

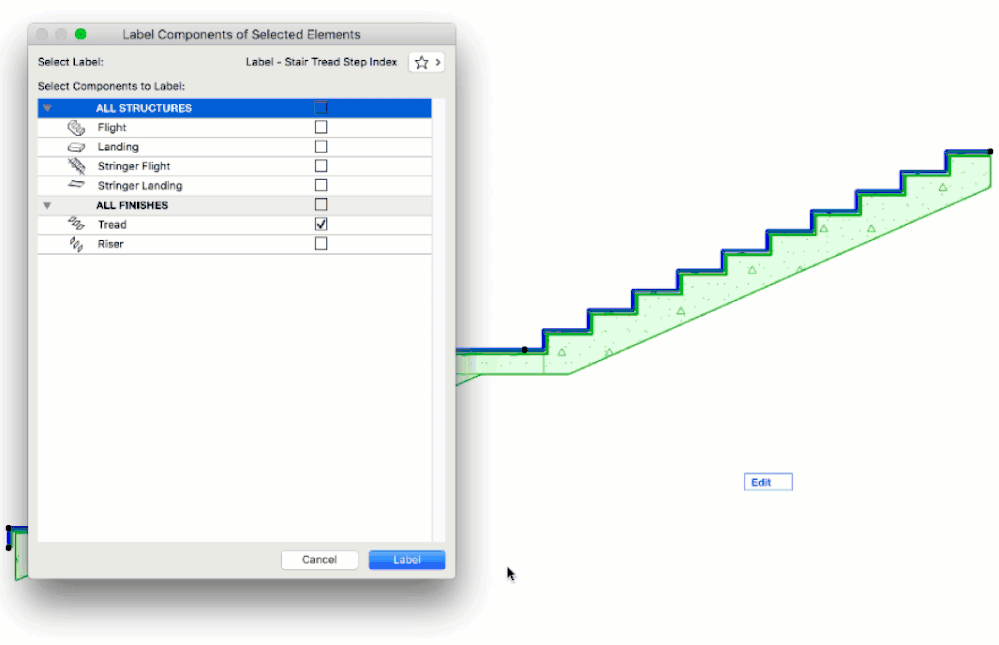

Click Document > Annotation > Label Components of Selected Elements to bring up the dialog box.

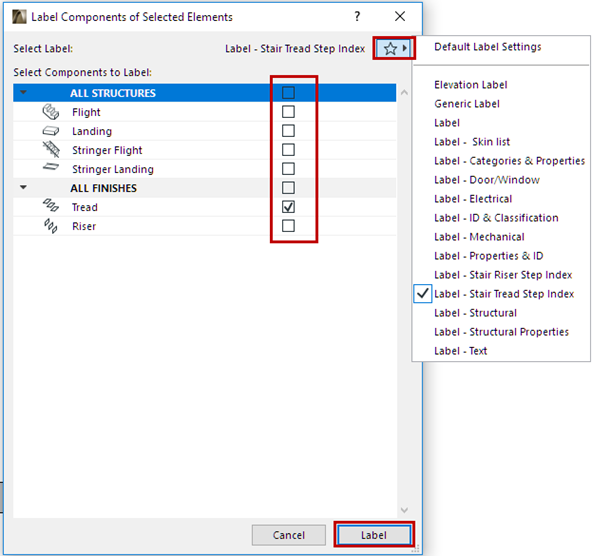

From the pop-up, choose a Label Type: the current default Label, or any of the Label Favorites.
Check the boxes of all the component types to which you would like to attach a Label. The Labels will be associative.
5. Click Label to place.
